Large steel water tanks

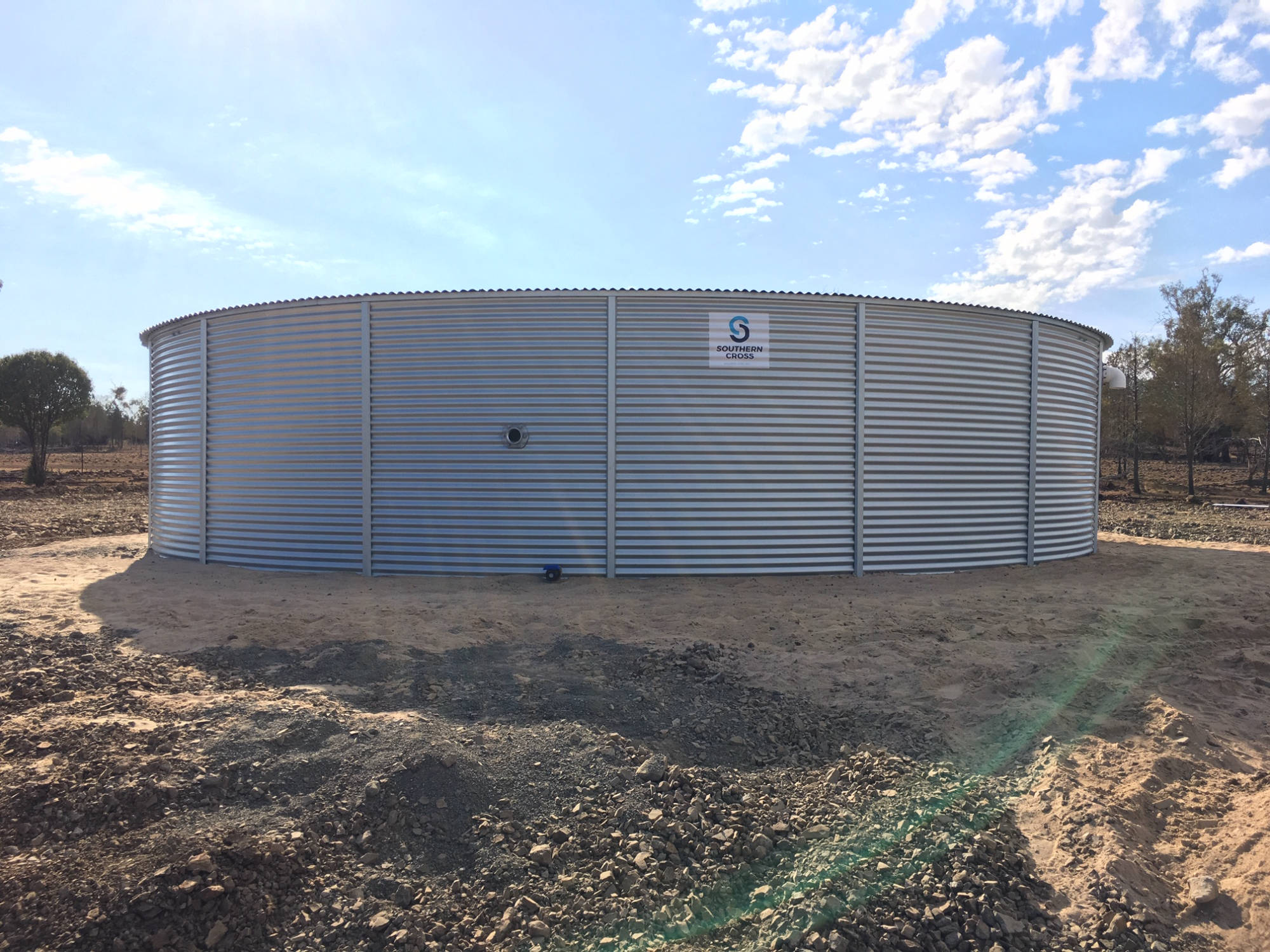

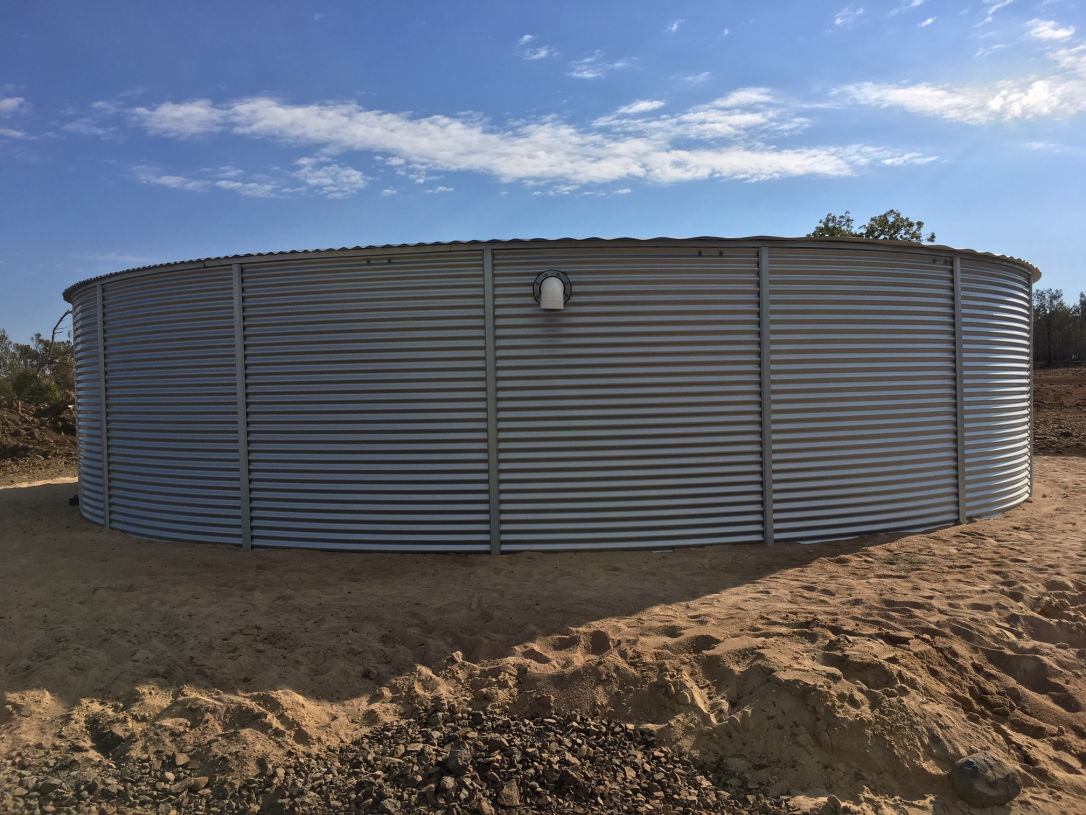

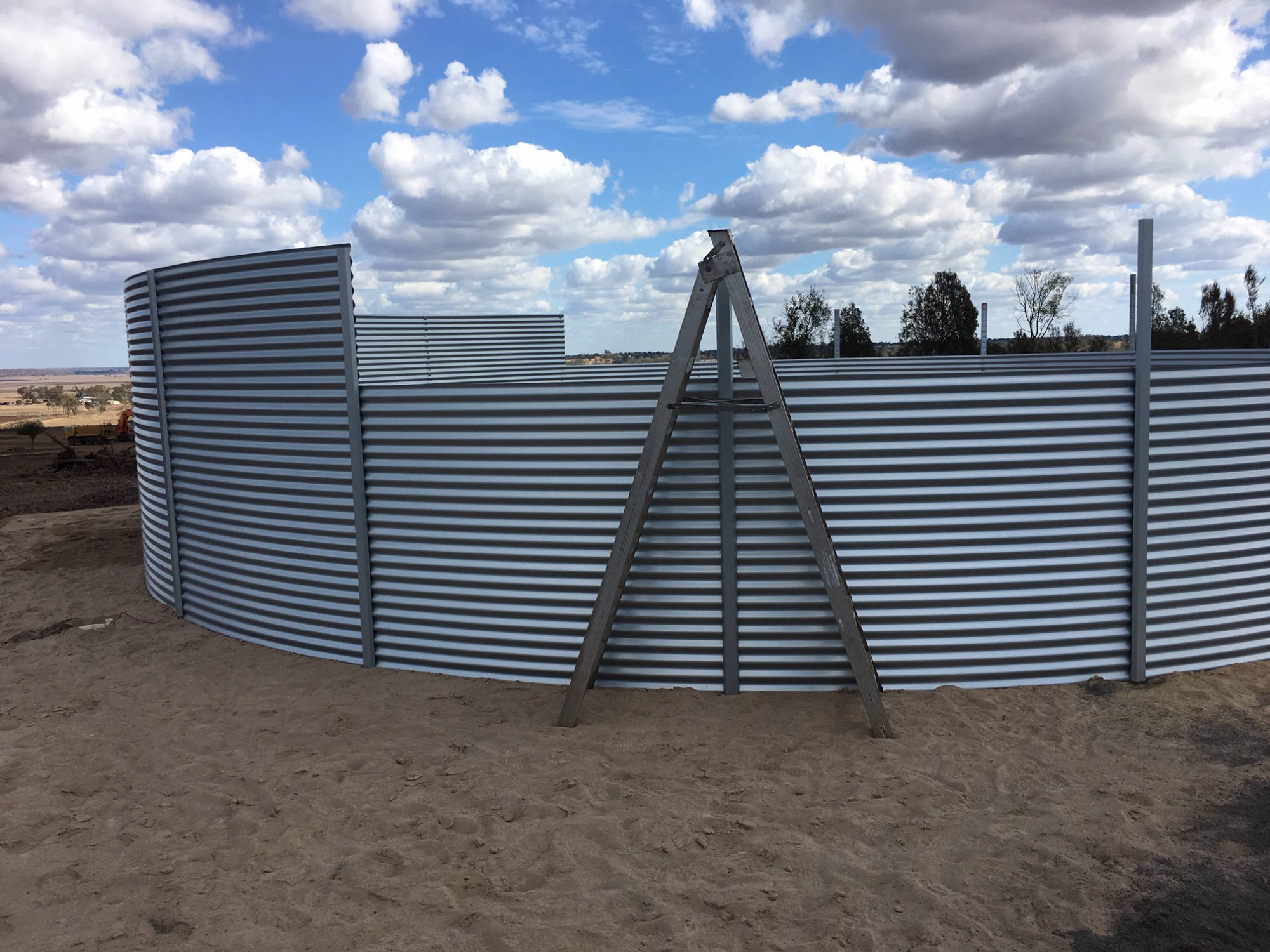

Corrugated Steel Water Tank
Water Tank Liner - l Armatec Tank Liner

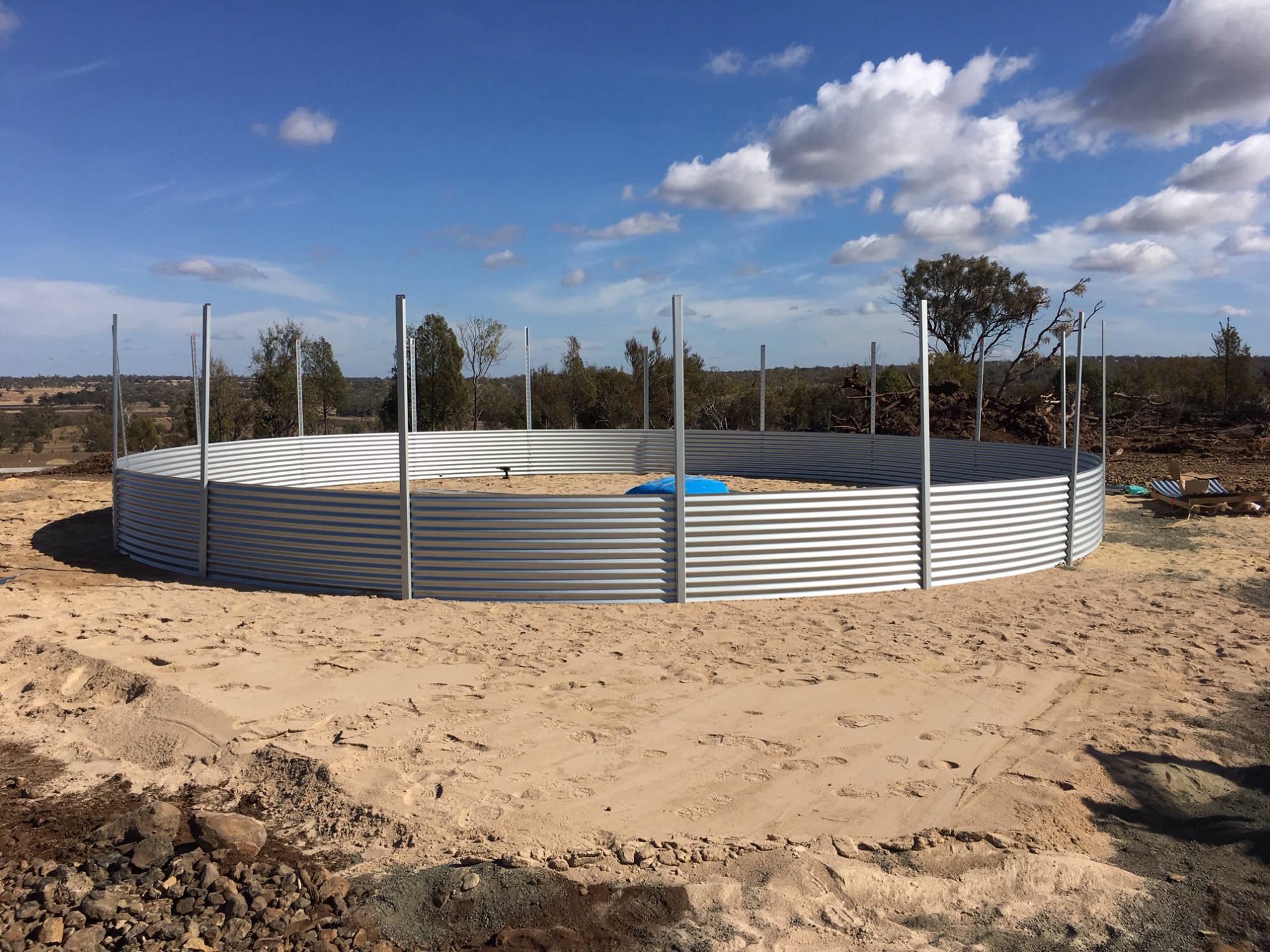

  • DIY Kit available - Do it yourself, Simple to erect, no special tools
  • Completely pre-fabricated  and supplied as a Water Tank kit for easy on-site erection
  • Available in Galvanised or Colorbond finishes
  • Pre- fabricated "bolt together" with potable water containment liner
  • Large capacity steel water tanks - 53,000 to 270,000 litres  capacities available
  • Sturdy construction for heavy duty service.
  • Fully pre-fabricated, portable and easily relocated
  • High quality design, construction materials and manufacture ensure long service life, and complete safety of vital water supplies.

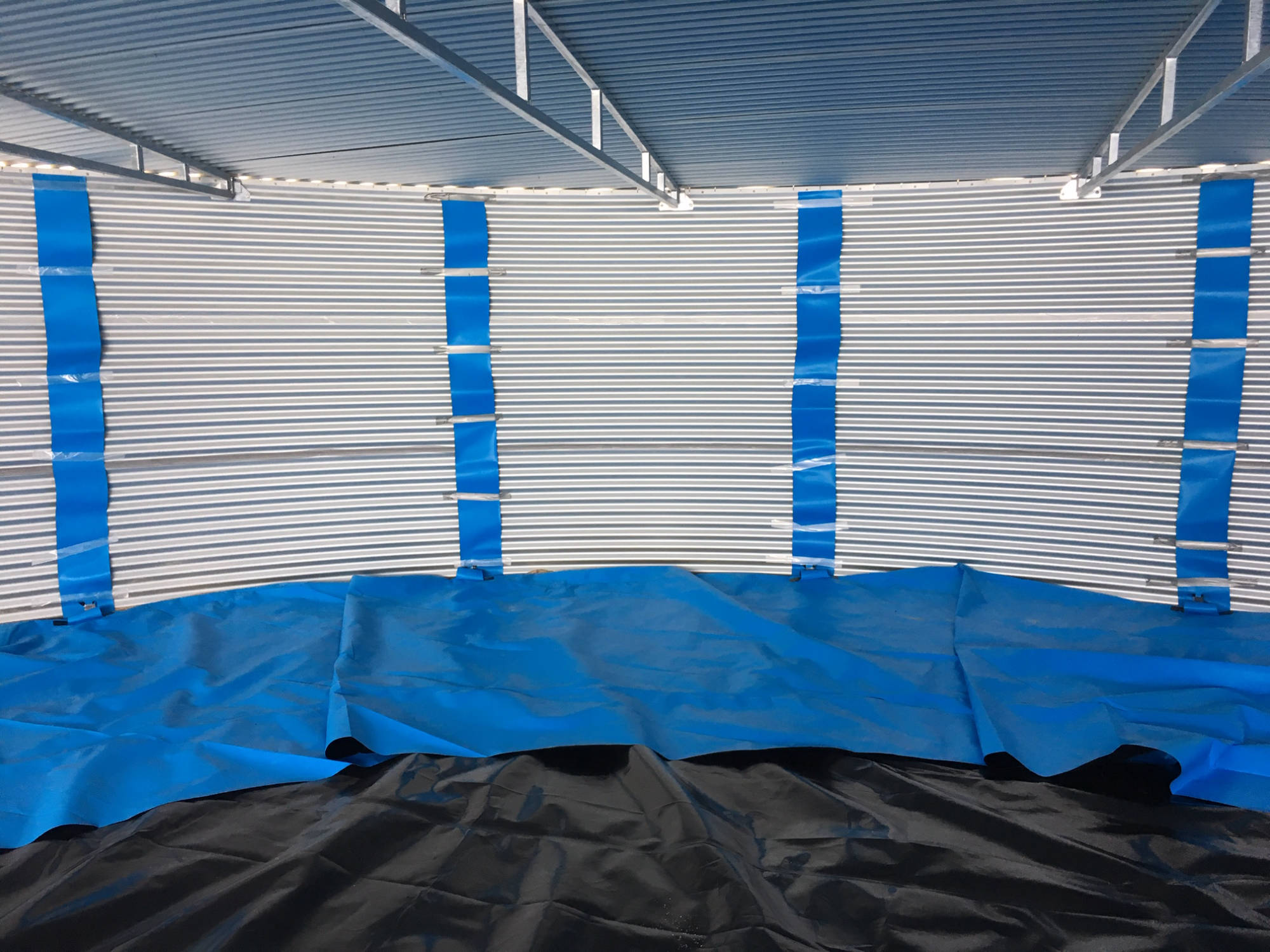

  • Strong,  steel construction with food grade AS/NZS 4020 ARMATec 4 Layer polyethylene liner (backed by 10 year Warranty) -formulated with an anti-fungal additive.
  • Suitable for all water storage applications, including domestic, stock watering and fire protection.
  • Easy to assemble Australian made Panel Tank.
  • Standard large rural water tank Suplied with ARMETec Liner, which is suitable for rainwater and low levels of chlorine.  Other containment liners options are available if required.
  • Options include mound rings, water level indicators, pressure pumps, roof vents we can also provide any other tank accessories that may be need for your tank.
  • Should you require a larger water tank, please see our Southern Cross Lined Water Tanks - TL Liner tank range - Available in sizes from 26,000 to 600,000 litres

Rural Water Tank Size Range

Below is our standard size range for the Traditonal corrugated look, we can supply up to 600,000 Litres (131,800 Gallons) in our flat panel tank design. Our Industrial tank range can cater up to 10 Million litres in various various heights and diameters. Need a quote? please request a price here

Tank Model Gross CapacityDimensions
Litres
GallonsDiameterHeight
SX5353,23011,7095.35m2.37m
SX6367,36914,8196.02m2.37m
SX8383,17218,2956.68m2.37m
SX100100,63822,1377.35m2.37m
SX120119,76226,3458.02m2.37m
SX140140,56130,9198.69m2.37m
SX163163,21735,8599.36m2.37m
SX187187,13741,16410.03m2.37m
SX213212,92046,83610.70m2.37m
SX240240,36752,87311.36m2.37m
SX270269,47759,27712.03m2.37m
