The wide range of tank capacities available and the choice of high or low profile design allows simple specification of a tank, or tanks, to suit particular space and location

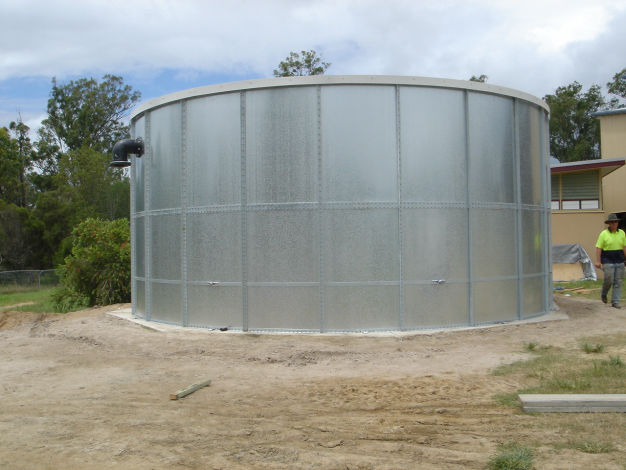

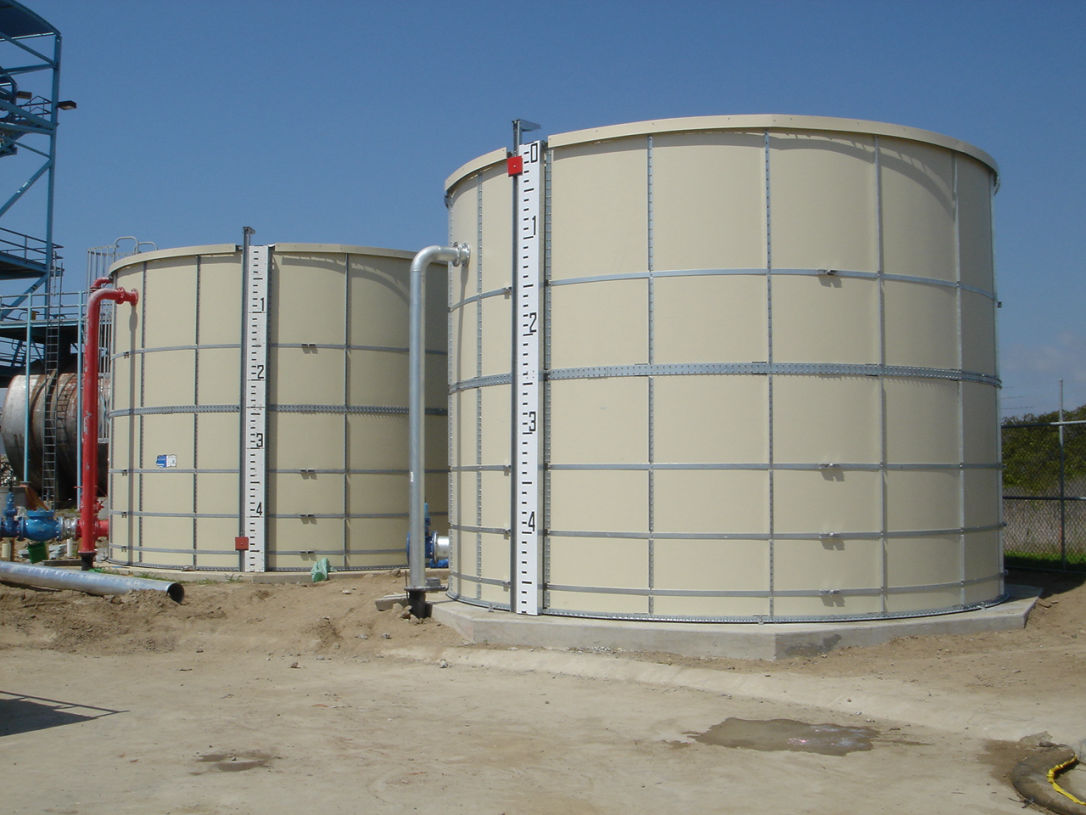

Southern Cross Water Tanks - Squatters Tank - Stripseal Design
• Ground level water tanks available up to 25.4 m diameter and up to 7.2 m in height, and depending upon wind and seismic loading conditions, certain (limited) tank capacities may be able to elevated up to 30 m high
• Completely pre-fabricated for easy transportation to site and simple on-site assembly
• Bolt-together “stripseal” design
• Southern Cross Water Tank Floor: 1.6mm galvanised steel panel sheets with bolted, lapped joints and special rubber gasket seals
• Southern Cross Squatter Water Tank Sides: Hot dip galvanised mild steel ring and batten framework supporting 1.6 mm thick galvanised steel panel sheets , bolted, lapped and sealed with rubber strip.
• FLAT TOPS: Available for all tank sizes and constructed of galvanised steel decking material mounted on galvanised steel framing supported by pipe posts.
• CONICAL TOPS: Available for all tank sizes. Finished with galvanised mild steel flat sheeting supported by galvanised steel framework and posts.
• Australian designed and manufactured
• Storage capacities from 9 to 3040 kilolitres in a range of heights and diameters
• Rugged, all galvanised steel construction to suit all conditions
• ISO 9001 quality assured
• Complies with relevant Codes under Australian Standards

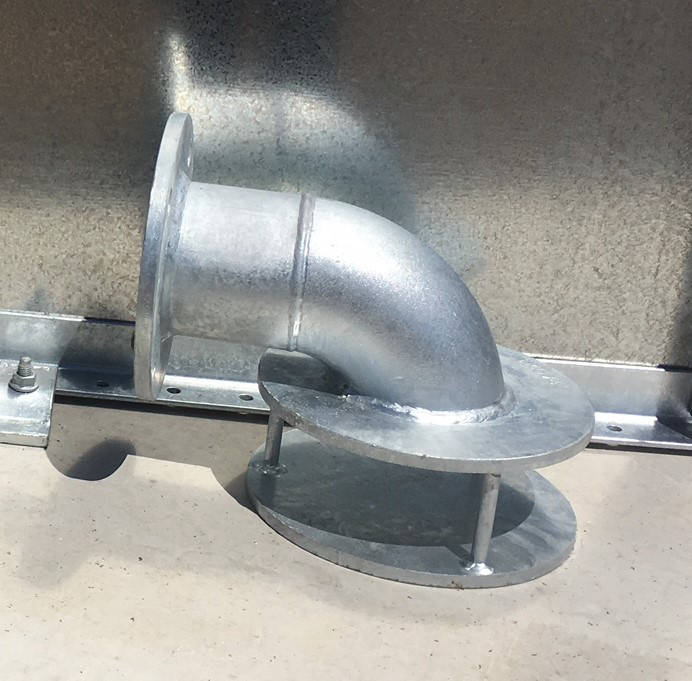

• Fittings to reduce vortex formation when water is being pumped out of tank enabling the bottom water level to be lower, increasing the usable capacity of the tank

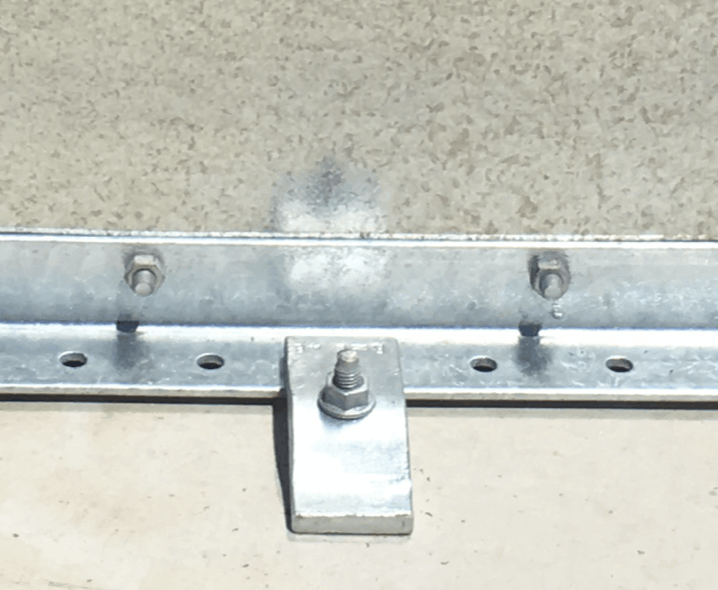

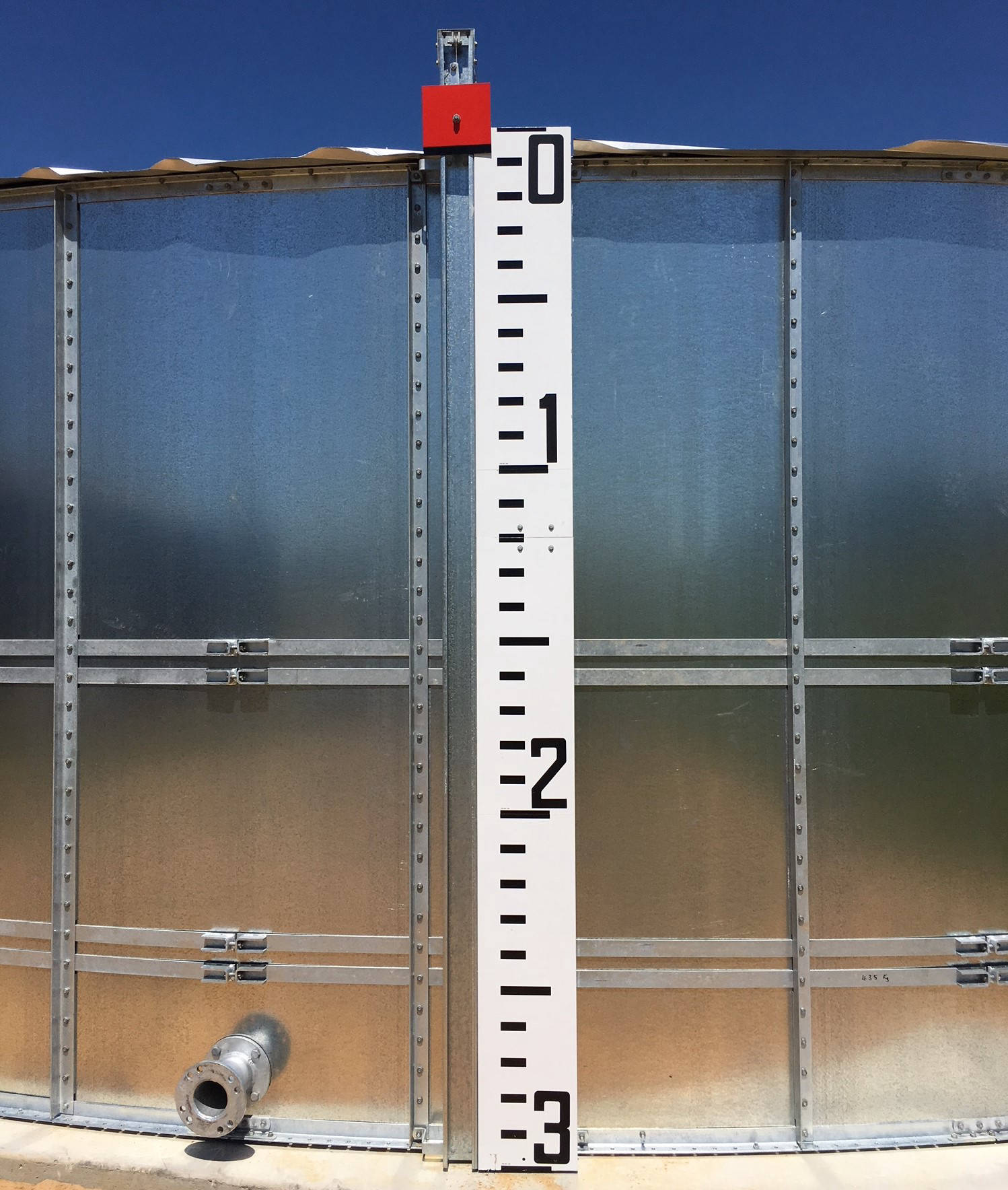

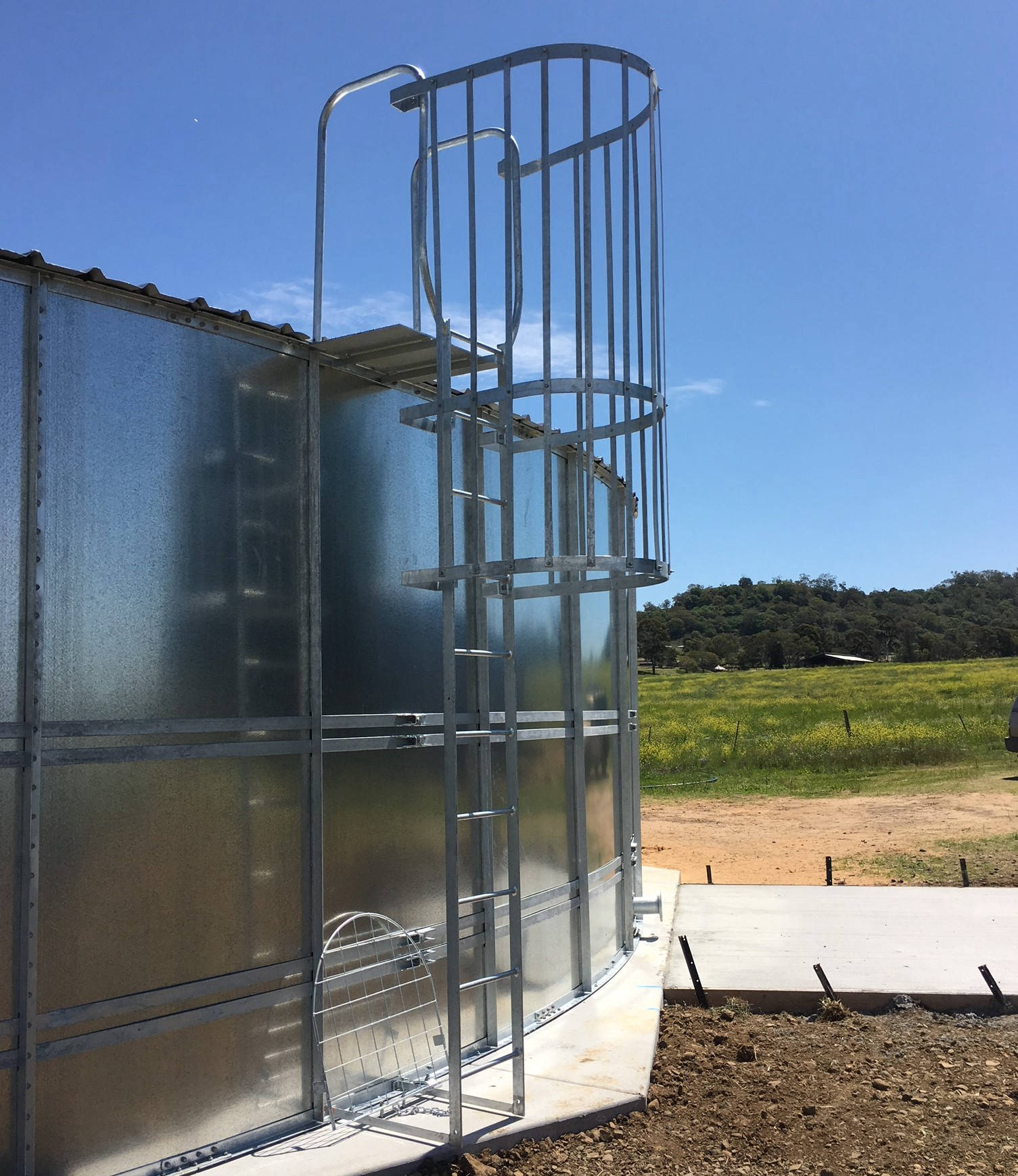

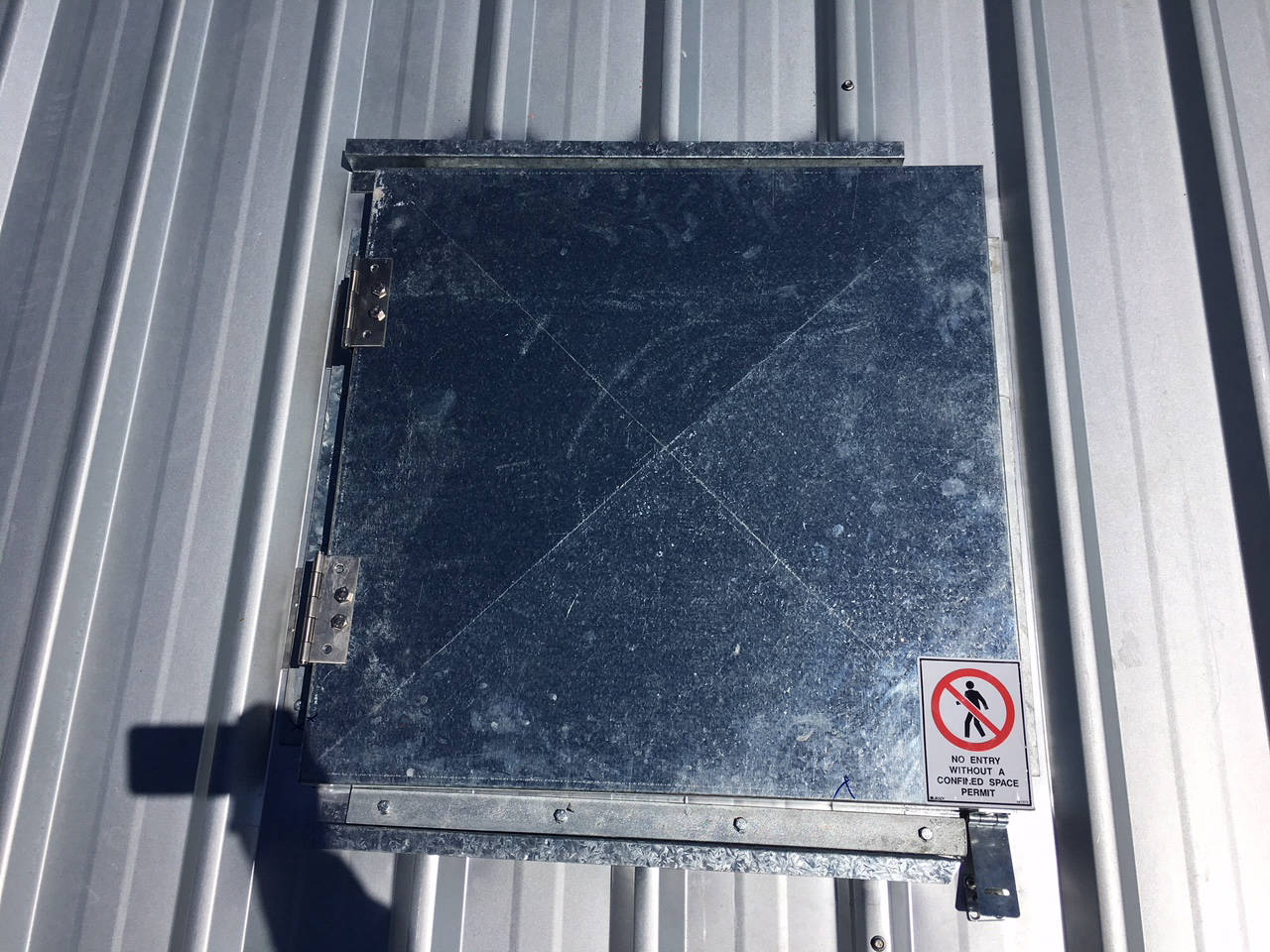

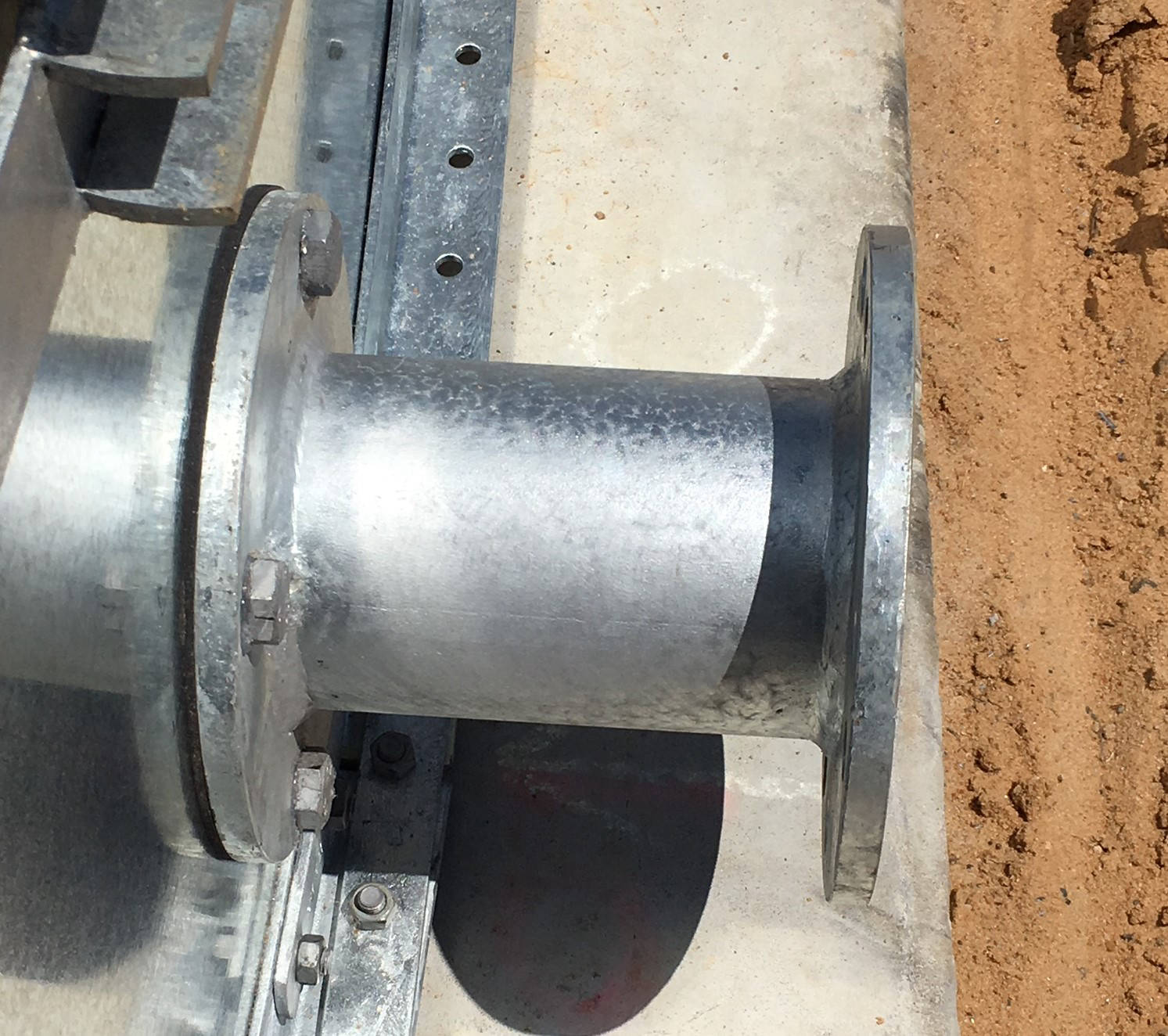

Australian Water Storage Group provides the following Southern Cross Water Tank Accessories - Galvanised Steel Tank Flanges, Galvanised Steel Anti Vortex plates both of these are also available in poly. Hold Down Clamps to keep your water tank safe, lockable roof access hatches, lockable safety ladders with caged access and handrails, Water Tank Indicators to suit all southern cross water tanks form basic to deluxe models.
Southern Cross Water Tanks - Squatter Tank Design does not use a containment liner, it is a gasket style tank, with a rubber stripseal.
